Monitor Object or Thread-safe passive object pattern

-

Background -

Object is an instance of a class. That class may have many methods. Monitor object make sure, only one method of class can execute at a time. Monitor object helps in case many threads are accessing a single object.

 Monitor object pattern also helps to achieve serialization at the function level. There are many benefits to using it. With monitor object pattern, we can avoid the old style of pooling (looping through based on one shared boolean variable), which is a waste of CPU time. Monitor object puts the thread in sleep mode until other concurrently executing methods notify it. Through this, we can also define the execution sequence of methods of a class.

 The good part is, now clients (who before pooling to get notified) don't have to worry about notification and serialization. Monitor object class can take care of all these issues.

How Monitor object achieve it?

In OOP, we learned to access data members of a class through API only. It means data members have to be private in your class. Extending it, we can make all real implementation methods, get executed through their public counterpart APIs only.

 It means the monitor object has two layers of execution. One, public APIs, which is a higher layer, and follows the serialization mechanism through mutex. Second, private implementation methods, low level, which don't have to bother about the mutex and serialization as higher layer has already done this. Low-level APIs have to focus on real business logic. But they are not supposed to call higher-level APIs. Because already one high-level API has locked the mutex and called it, and calling another high-level API, it is a bad idea first, undefined behavior in case of locking the same mutex from another high-level API. Second, chances of deadlock if high-level API is locking other mutex.

Disadvantage -

  1. Scalability, as only a single lock, can handle all serialization. We can solve it by having multiple locks, but that become complex to manage.
  2. Monitor object's functionality and serialization mechanism tightly coupled. Any tight coupling is not a good practice.

Sequence diagram

Monitor object pattern sequence diagram
Please click on the image to see the zoom view.


Class diagram

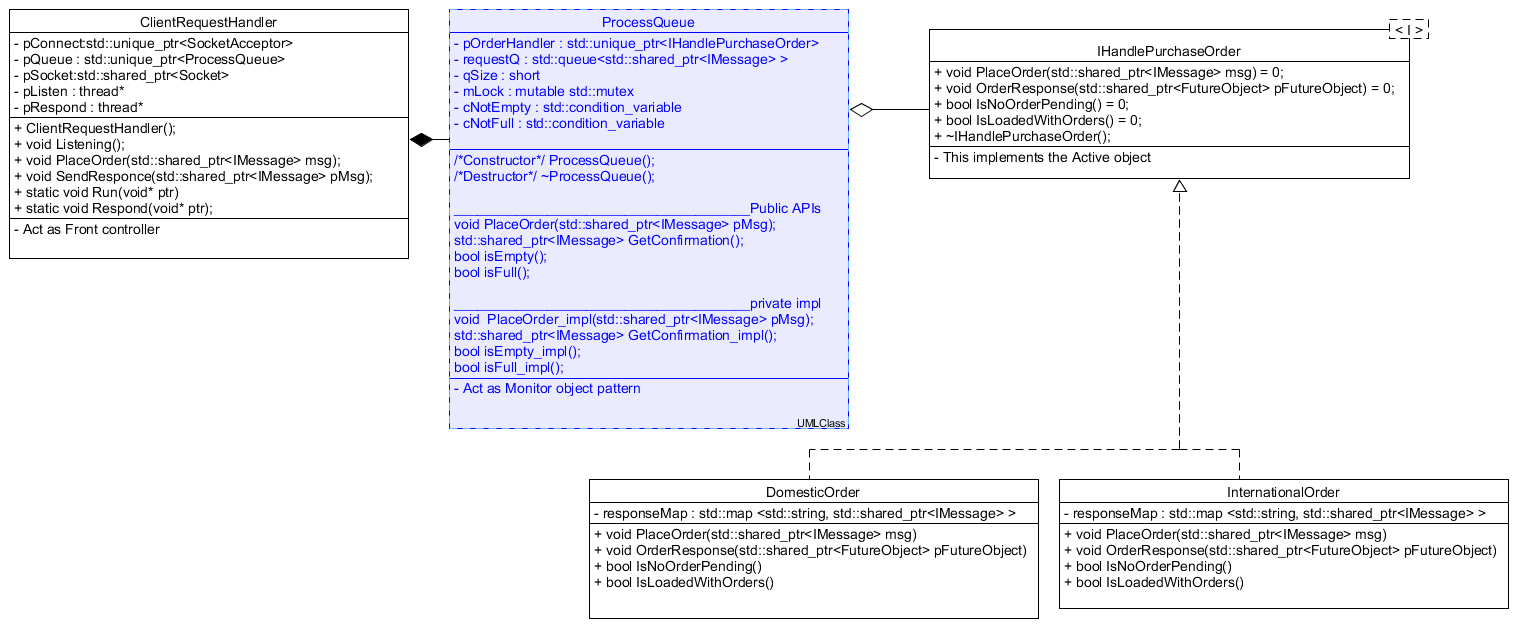

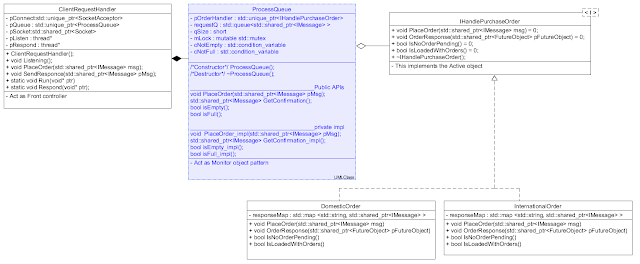

Class ProcessQueue is monitor object in below mentioned class diagram.

Monitor object pattern Class diagram
Please click on the image to see the zoom view.


ProcessQueue.h

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/
#ifndef _PROCESS_QUEUE_H_
#define _PROCESS_QUEUE_H_
#pragma once

#include <queue>
#include <memory>
#include <mutex>
#include <condition_variable>
#include "IMessage.h"
#include "HandleOrder.h"

using namespace IO_MSG;

namespace MonitorObject
{
  class ProcessQueue
  {
  private:
    std::unique_ptr<IHandlePurchaseOrder>             pOrderHandler;
    std::queue<std::shared_ptr<IMessage> >            requestQ;
    short                                             qSize;
    mutable std::mutex                                mLock;
    std::condition_variable                           cNotEmpty;
    std::condition_variable                           cNotFull;

    //_________________________________________private functions for real implementation
    void                                              PlaceOrder_impl(std::shared_ptr<IMessage> pMsg);
    std::shared_ptr<IMessage>                         GetConfirmation_impl();
    bool                                              isEmpty_impl();
    bool                                              isFull_impl();

  public:
    /*Constructor*/                                   ProcessQueue();
    /*Destructor*/                                    ~ProcessQueue();

    //_________________________________________Public APIs
    void                                              PlaceOrder(std::shared_ptr<IMessage> pMsg);
    std::shared_ptr<IMessage>                         GetConfirmation();
    bool                                              isEmpty();
    bool                                              isFull();
  };
}

#endif // !_PROCESS_QUEUE_H_

ProcessQueue.cpp

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/
#include "ProcessQueue.h"
#include "Log.h"
#include "GlobalFactory.h"

using namespace LOG;
using namespace SESSION;

namespace MonitorObject
{
  ProcessQueue::ProcessQueue() : qSize(0)
  {
    LOG_IT(SETUP_INFO, "Construction Process: ProcessQueue is being created ");
    qSize = std::stoi(FactoryInstance::GetGlobalFactory()->GetConfigurationManager()->GetValue("Queue_Max_size", VALUE));
    pOrderHandler = make_unique<DomesticOrder>();
  }

  ProcessQueue::~ProcessQueue()
  {
    LOG_IT(SETUP_INFO, "Cleanup Process: of ProcessQueue has begin");
  }

  void ProcessQueue::PlaceOrder(std::shared_ptr<IMessage> pMsg)
  {
    std::unique_lock<std::mutex> lockIt(mLock);
    while (isFull_impl())
    {
      cNotFull.wait(lockIt);
    }
    PlaceOrder_impl(pMsg);
    cNotEmpty.notify_one();
  }

  std::shared_ptr<IMessage> ProcessQueue::GetConfirmation()
  {
    std::unique_lock<std::mutex> lockIt(mLock);
    while (isEmpty_impl())
    {
      cNotEmpty.wait(lockIt);
    }
    std::shared_ptr<IMessage> msg = GetConfirmation_impl();
    cNotFull.notify_one();
    return msg;
  }

  bool ProcessQueue::isEmpty()
  {
    std::lock_guard<std::mutex> lockIt(mLock);
    return isEmpty_impl();
  }

  bool ProcessQueue::isFull()
  {
    std::lock_guard<std::mutex> lockIt(mLock);
    return isFull_impl();
  }

  void ProcessQueue::PlaceOrder_impl(std::shared_ptr<IMessage> pMsg)
  {
    requestQ.push(pMsg);
    pOrderHandler->PlaceOrder(pMsg);
  }

  std::shared_ptr<IMessage> ProcessQueue::GetConfirmation_impl()
  {
    std::shared_ptr<IMessage> msg = requestQ.front();
    pOrderHandler->OrderResponse(msg);
    requestQ.pop();
    return msg;
  }

  bool ProcessQueue::isEmpty_impl()
  {
    return requestQ.empty();
  }

  bool ProcessQueue::isFull_impl()
  {
    return requestQ.size() == qSize - 1;
  }
}

ClientRequestHandler.h

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/
#ifndef _CLIENT_REQUEST_HANDLER_H_
#define _CLIENT_REQUEST_HANDLER_H_
#pragma once

#include "SocketAcceptor.h"
#include "ProcessQueue.h"

using namespace IO_MSG;
using namespace SERVER_SOCKET;


namespace MonitorObject
{
  //class ClientRequestHandler : std::enable_shared_from_this<ClientRequestHandler>
  class ClientRequestHandler
  {
  private:
    std::unique_ptr<SocketAcceptor>     pConnect;
    std::unique_ptr<ProcessQueue>       pQueue;
    std::shared_ptr<Socket>             pSocket;
    thread*                             pListen;
    thread*                             pRespond;

  public:
    /* constructor */                   ClientRequestHandler();
    /* destructor */                    ~ClientRequestHandler();

    /*!
    * Description : This function will help to open the server connection for always listening.
    */
    void                                Setup();
    void                                Cleanup();
    void                                PlaceOrder(std::shared_ptr<IMessage> msg);
    void                                SendResponse(std::shared_ptr<IMessage> pMsg);
    /*!
    * Description : This function is the starting point of new thread.
    */
    static void                         Respond(void* ptr);
    static void                         Run(void* ptr);
  };
}
#endif // !_CLIENT_REQUEST_HANDLER_H_

ClientRequestHandler.cpp

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/

#include "ClientRequestHandler.h"
//#include "GlobalFactory.h"

namespace MonitorObject
{
  ClientRequestHandler::ClientRequestHandler() : pListen(nullptr), pRespond(nullptr)
  {
    LOG_IT(SETUP_INFO, "Construction Process: ClientRequestHandler has begin");
    pConnect = std::make_unique<SocketAcceptor>();
    pQueue = std::make_unique<ProcessQueue>();
    if (!pConnect->IsServerSocketCreated())
    {
      LOG_IT(ERROR_MSG, "Construction Process: Setting up the server socket has been failed");
    }
    pSocket = std::make_shared<Socket>();
  }

  ClientRequestHandler::~ClientRequestHandler()
  {
    LOG_IT(SETUP_INFO, "Cleanup Process: of ClientRequestHandler has begin");
    Cleanup();
    if (pListen != nullptr)
    {
      delete pListen;
      pListen = nullptr;
    }
  }

  void ClientRequestHandler::Setup()
  {
    LOG_IT(SETUP_INFO, " ClientRequestHandler is about to create a new listening thread.");
    pListen = new std::thread(ClientRequestHandler::Run, this);
    pRespond = new std::thread(ClientRequestHandler::Respond, this);
    if (pConnect->IsServerSocketCreated())
    {
      pConnect->MultiClientAccept();
    }
  }

  void ClientRequestHandler::Cleanup()
  {
    if(pListen->joinable())
      pListen->join();
  }

  void ClientRequestHandler::Run(void *ptr)
  {
    LOG_IT(SETUP_INFO, " ClientRequestHandler Created new listening thread.");
    ClientRequestHandler* thisPtr = static_cast<ClientRequestHandler *>(ptr);
    Queue <shared_ptr<IMessage > >& Q = Socket::GetClientRequests();
    while (true)
    {
      std::unique_lock<std::mutex> lockIt(Q.GetMutex());
      Q.GetNotified().wait(lockIt, [&]() {return  !Q.IsEmpty(); });
      shared_ptr<IMessage > pMsg = Q.Front();
      Q.Remove();
      thisPtr->PlaceOrder(pMsg);
    }
  }

  void ClientRequestHandler::PlaceOrder(std::shared_ptr<IMessage> pMsg)
  {
    LOG_IT(SETUP_INFO, "Placing customer order");
    pQueue->PlaceOrder(pMsg);

  }

  void ClientRequestHandler::Respond(void* ptr)
  {
    LOG_IT(SETUP_INFO, " Respond loop has begin ");
    ClientRequestHandler* thisPtr = static_cast<ClientRequestHandler*>(ptr);
    while (true)
    {
      thisPtr->SendResponse(thisPtr->pQueue->GetConfirmation());
    }
  }

  void ClientRequestHandler::SendResponse(std::shared_ptr<IMessage> pMsg)
  {
    LOG_IT(SETUP_INFO, "Sending response back to the customer");
    pSocket->SendToClient(pMsg->GetResponse().c_str(), stoi(pMsg->GetClientSocket()));
  }

}

HandleOrder.h

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/
#ifndef _HANDLE_ORDER_H_
#define _HANDLE_ORDER_H_
#pragma once

#include "WriteOnlyFile.h"
#include "IMessage.h"

using namespace FILE_IO;
using namespace IO_MSG;

namespace MonitorObject
{
  /*!
  * Description : When IHandlePurchaseOrder's concrete implementation completes its execution. it
                  can acquier a write lock on FutureObject (Which clients owns through ServerProxy::
                  GetConfirmation method) object and update it's value.
                - Any client thread who is waiting for result, can wake-up and see it after this.
  */
  class IHandlePurchaseOrder
  {
  public:
    virtual void                            PlaceOrder(std::shared_ptr<IMessage> msg) = 0;
    virtual void                            OrderResponse(std::shared_ptr<IMessage> msg) = 0;
    virtual                                 ~IHandlePurchaseOrder();
  };

  class DomesticOrder : public IHandlePurchaseOrder
  {
  private:
    void                                                  LogOrder(std::shared_ptr<IMessage> msg, std::unique_ptr<IWriteOnlyFile>& pFile);
  public:
    virtual void                            PlaceOrder(std::shared_ptr<IMessage> msg) override;
    virtual void                            OrderResponse(std::shared_ptr<IMessage> msg) override;
  };

}
#endif // end of _HANDLE_ORDER_H_

HandleOrder.cpp

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/

#include "HandleOrder.h"
#include "GlobalFactory.h"

using namespace FILE_IO;
using namespace SESSION;

static const string RESPONSE = "Your order is placed ";

namespace MonitorObject
{
  IHandlePurchaseOrder::~IHandlePurchaseOrder()
  {
    LOG_IT(SETUP_INFO, "Cleanup Process: of IHandlePurchaseOrder base class.");
  }

  void DomesticOrder::PlaceOrder(std::shared_ptr<IMessage> msg)
  {
    LOG_IT(SETUP_INFO, "placing the order at server end");
    std::string filePath = FactoryInstance::GetGlobalFactory()->GetFileName();
    filePath = filePath.substr(0, filePath.find_last_of("\\"));
    filePath = filePath + "\\" + msg->GetClientCode() + "\\" + msg->GetClientSocket() + ".log";
    std::unique_ptr<IWriteOnlyFile> pFile = std::make_unique<WriteOnlyFile>(filePath, KEEP_OLD_CONTENT_ON_EVERY_RELOAD, false);
    LogOrder(msg, pFile);
  }

  void DomesticOrder::LogOrder(std::shared_ptr<IMessage> msg, std::unique_ptr<IWriteOnlyFile>& pFile)
  {
    LOG_IT(INFO, "Create a folder and file at server, with client's request massage");
    string response = msg->GetMsg();
    response = RESPONSE + response;
    msg->SetResponse(response);
    pFile->Write(response.c_str());
  }

  void DomesticOrder::OrderResponse(std::shared_ptr<IMessage> msg)
  {
    LOG_IT(SETUP_INFO, "Responding to clients order");
    string finalResponse = msg->GetResponse();
    finalResponse = finalResponse + "You will receive it within one day";
    msg->SetResponse(finalResponse);
  }
}

Main.cpp

/***************************************************************************************************
//   Author:    Kunjesh Singh Baghel
//   Web-page:  https://sites.google.com/site/kunjeshsinghbaghel/
***************************************************************************************************/

#include "ClientRequestHandler.h"
#include "GlobalFactory.h"

using namespace MonitorObject;
using namespace SESSION;

void Test_MonitorObject()
{
  std::unique_ptr<ClientRequestHandler> pClientRequestHandler = std::make_unique<ClientRequestHandler>();
  pClientRequestHandler->Setup();
}


int main()
{
  FactoryInstance::GlobalFactoryInit(); // This will initialize all global mandatory modules.
  Test_MonitorObject();
  FactoryInstance::GlobalFactoryCleanUp();

  return 0;
}


Thanks for reading it. To learn more about design patterns and basic design principles, please see my web page.

Comments

Post a Comment

Popular posts from this blog

Non-virtual interface idiom (NVI)

-
In almost every cases, it’s recommended to follow OOAD principles, but sometimes we should try to look some other alternatives, provided by programming languages, which could be a better options for certain situations. In C++, we can implement virtual function in private and we can redefine its behavior in derived class's private  and it will work in same way(did you try that?). When we define virtual function as private and expose a non-virtual public function to outer world, we call it “ non-virtual interface idiom ”. Non-virtual public function will internally call virtual function, in other words you are not exposing your virtual function to client. You will achieve high encapsulation, plus we can add pre and post execution/condition in the body of non-virtual public function. Call some set of functions, as prerequisite of calling virtual function, and after call returns from virtual function, again call some set of function as part of post cleanups/conditions,
Read more

Architectural patterns => Mud to structure => layers.

-
Background - We apply mud to structure when a large system requires decomposition. If you notice, your application/requirement has verity of logical units which can be decomposed into a group of sub-tasks, first,  group them into different levels of abstraction. One abstract unit perform a totally different task(s) from other units, but any unit alone is not enough to give meaningful service to customer. Actually, different issues/solutions are splinted into different abstract units. Second,  after you divide them into different units, if you see a mix of low and high-level dependencies, where high-level operations depend on low-level operations, then assume those logical units as layers, third draw a dependency diagram between layers.  If control flows from high to low layer (or dependency diagram forms a stack, one layer on top of other), you can think of implementing it through layer pattern. Layer architecture - We can have many components in one layer. Layer
Read more

Architectural style -> Adoptable system -> Reflection.

-
Background - We have discussed very less about reflection, especially if you are C, C++, mainframe, LSI developer and working on server side implementation or in low level hardware-interaction development team.  But it is very popular among high level languages like JAVA, Scala, C#, Python etc, many languages have implemented reflection in it.  It gives you flexibility to do things dynamically (at run-time). After working closely with different clients, you will get a clear understanding that no one is as confusing as a software client, not even your girlfriend! So we should have a flexible architecture in place who can absorb shocks of client’s last moment changes. Not only that, sometimes we have N number of different behaviors and structure in place, and we want our application to behave differently depending upon run-time situations. Let’s build understanding step by step through an example. Think you have got an assignment where you have to build an application
Read more
